Remove fuel lines from engine

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

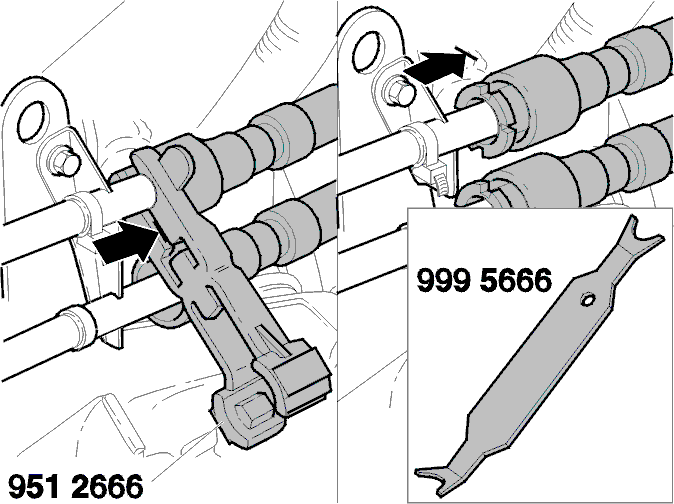

Fig 1: Removing Fuel Lines From Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

model year -97

Install special tool 9512666 around the fuel line and push the quick-fit and the tool to each other.

Take off the fuel line together with the tool.

model year 98-

Remove the quick-fit(s) by pushing the fuel line to the front and pulling the locking ring to the back, together with the fuel line, at the same time.

Use special tool 9995666 .
