Remove cable harness

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

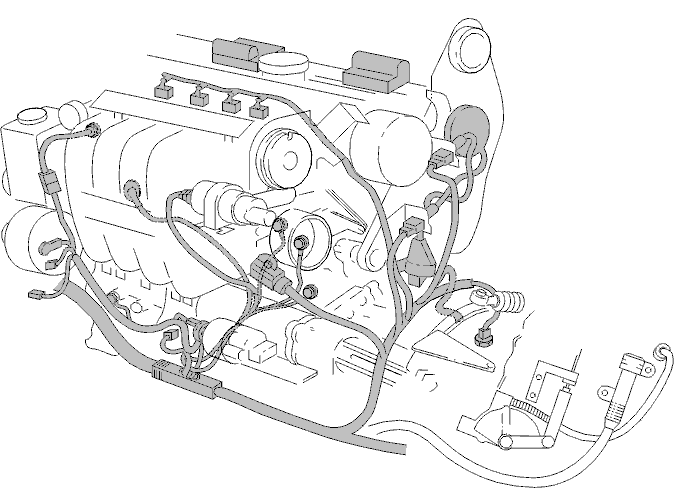

Fig 1: Removing Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the plug connectors from the engine.

NOTE:

Note the positions of all the cable harness mounting-points.

The alternator
The injectors and the cable tie-wraps
The throttle position (TP) sensor
The idle air-control (IAC) valve and take it out of the clamp
The ignition coils and the ground connection
The cable guide and the engine coolant temperature (ECT) sensor.
