Gearbox, RH drive shaft seal, changing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

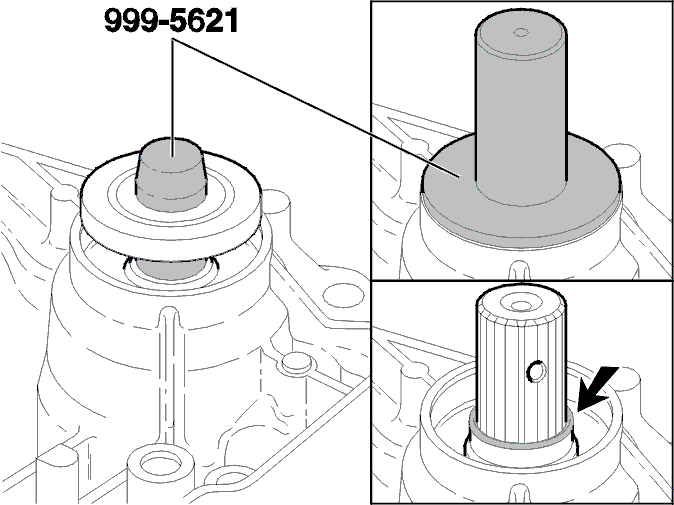

Fig 1: Replacing RH Drive Shaft Seal
GLL115835Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the O-ring.

Remove the seal.

Clean the cover and the shaft.
