Connecting the breakout box

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Breakout Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.
Expose heater according to Removing bumper .

Connect the adapter 9511373 to the control module connector and connect breakout box 9813190 to the adapter.

Disconnecting the breakout box in reverse order.

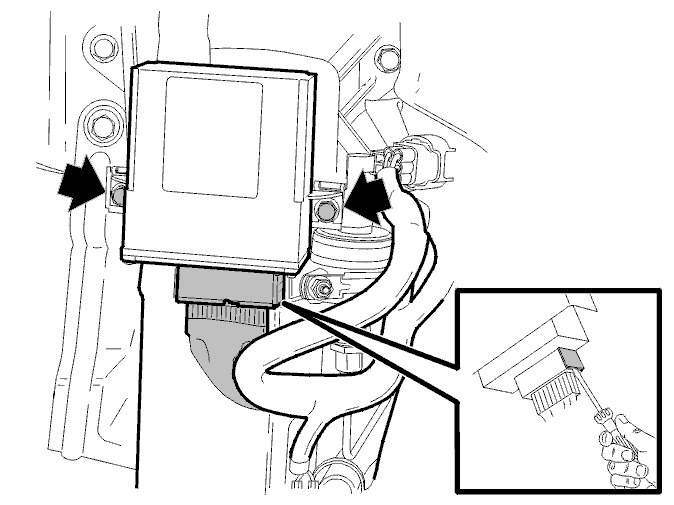

Fig 2: Removing Control Module Using Screwdriver

Courtesy of VOLVO CARS OF NORTH AMERICA.

Location of components see Additional heater 912-B .
