Removing Bumper

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Splash Guard Under Engine

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

splash guard under engine.
clips under bumper (2x).
fender mounting (2x Self-tapping screws).

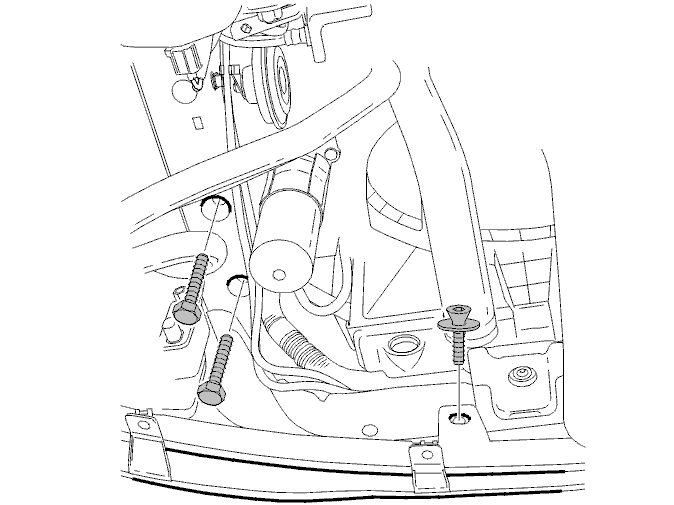

Fig 2: Bumper Mounting On Splash Guard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

bumper mounting on the splash guard (2x Self-tapping screws).
the four screws to the brace on the bottom section.
connectors for the fog lamp, horn, turn indicator assemblies and headlamp wiper.

Raise the headlamp wiper arm.

Remove:

headlamp washer hose at the T connector.
bumper.
