Front Wing: Installation

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

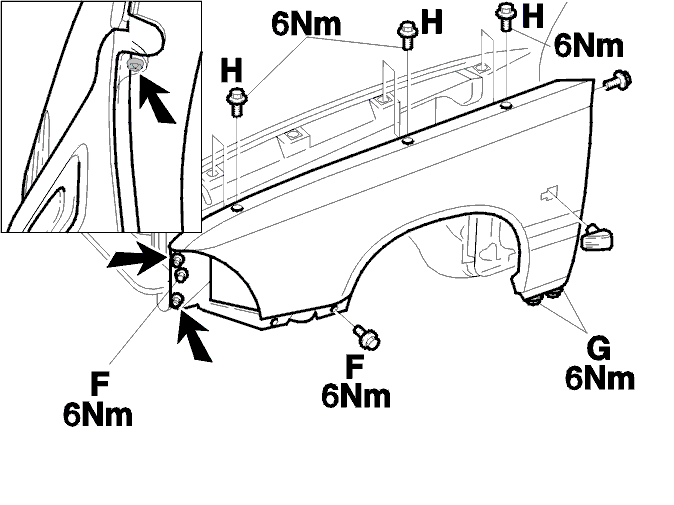

Fig 1: Identifying Tightening Torques

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the inside of the front wing and attachment surface on the bodywork.
Treat the cleaned parts with an anti-corrosive.
Fit the front wing in the correct position.

NOTE: Tighten the bolts on the top first. Tightening torque: 6 Nm.

Fit the new protective molding, see Replacing Protective Strips .
Turbo: Install the engine bay covers.
Clean the surface on the eye brown part and apply tape (P/N 1161449) on the place where removed.
Fit the eye brown part.
Fit the foam at the door side
Fit front indicator.
Fit side indicator.
Fit sill trim
Fit the wing liner.
