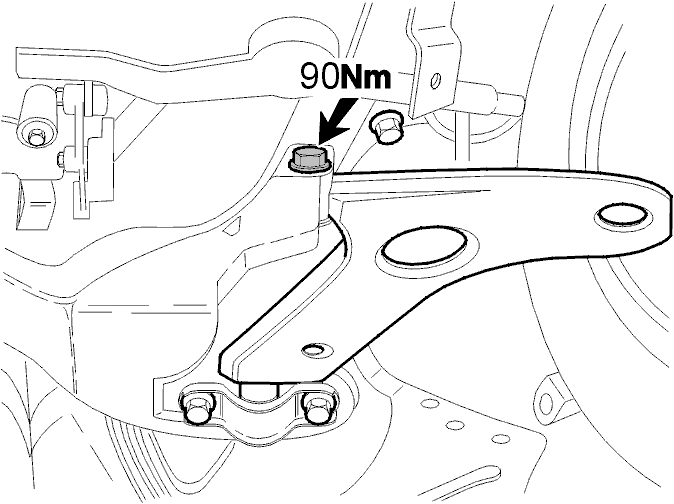

Fig 1: Installing Cross Member
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove the support and rock the car a few times so that the bushings come into the correct position.
Tighten the pin bolt nut. Tighten to 90 Nm + 60°
.
