Removing the Steering Gear Housing From the Cross Member

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

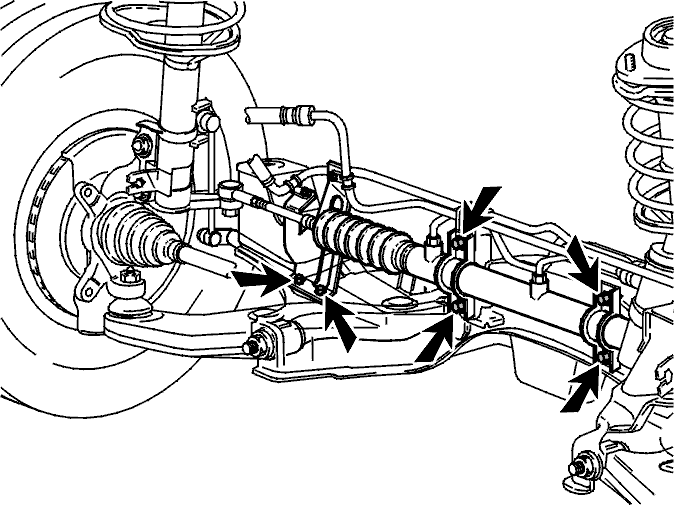

Fig 1: Removing/Installing Steering Gear Housing From Cross Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the rear engine mounting from the transmission
the screw from the heat deflector plate for the steering gear housing
the two screws from the pipe bracket on the cross member
the heat deflector plate
the four screws from the steering gear housing
the brackets. Lift the steering gear housing from the cross member.
