Install the Control Arm
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

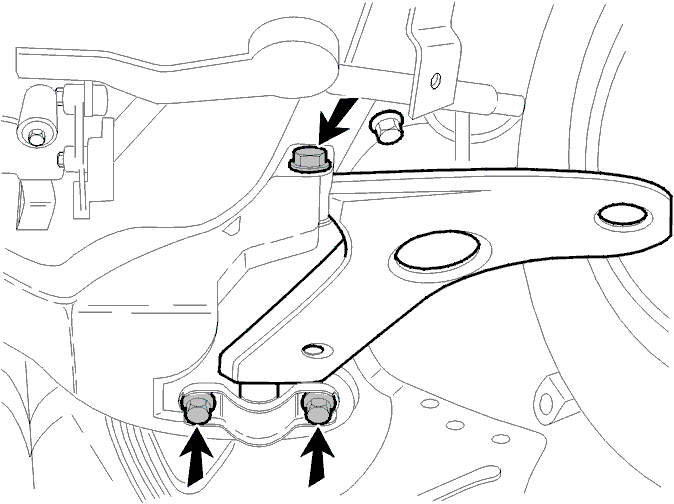

Install the control arm with the ball joint on the wheel spindle.
Install the control arm in the cross member. Install the screw and nut.
Install the two screws in the rear bushing.
Tighten all screws and nuts by hand.
Post-tighten the two rear screws. Tighten to 90 Nm.
