Control Arm, Installing
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

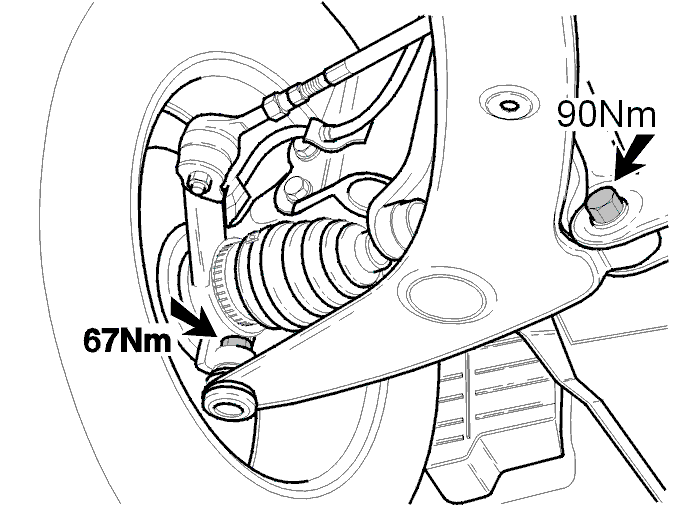

Press the ball joint all the way down. Tighten to 67 Nm.
Remove the support and rock the car a few times so that the bushings come into the correct position.
Tighten the nut. Tighten to 90 Nm + 60° .
Check:
- the front mounting and wheel alignment. See Wheel Alignment, Checking/Adjusting .
