Installing the Oil Pipe For the Steering Gear Housing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

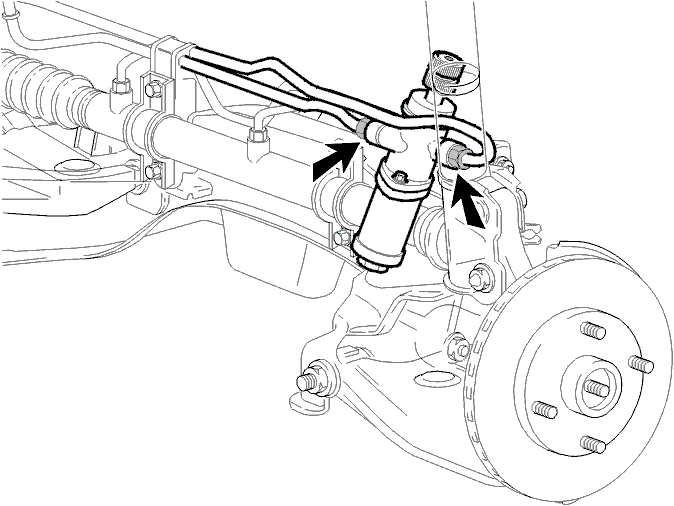

Fig 1: Steering Gear Housing Lines

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install new O-rings on the pipes.

Left-hand drive cars: Install the pipe clamp at the mounting by the heat deflector plate.

Install both the pipes on the steering gear housing. Tighten the connections by hand.

Secure the pipes and brackets with clamps. Tighten to 10 Nm.

Tighten the connections. Tighten to 15 Nm.

Check that the pipes are unimpeded.

Wipe off any fluid spillage.
