Replace the Lock Cylinder For the Steering Wheel Lock

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

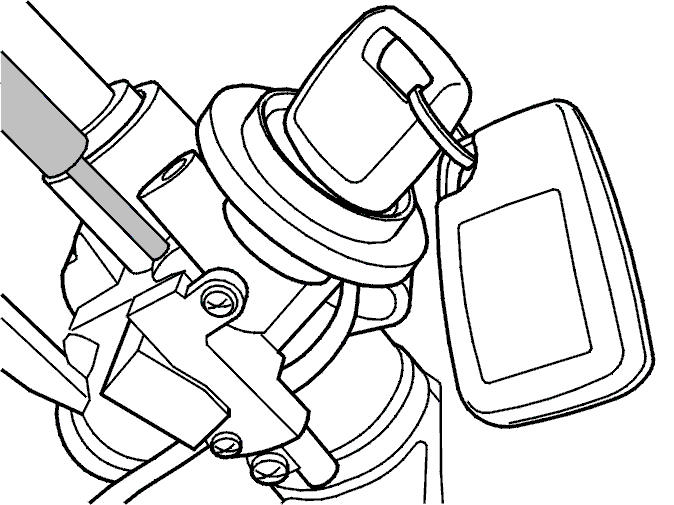

Fig 1: Removing/Installing Lock Cylinder

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Turn the ignition key to position 1.

Press down the lug for the lock cylinder. Use a 2 mm drift.

Remove the steering wheel lock.

Install:

Insert the ignition key in the new lock.

Turn the ignition key to position 1.

Press the lug down using a drift. Press the cylinder into the ignition switch.

Check that everything is functioning correctly.
