Remove the Pulley From the Power Steering Pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

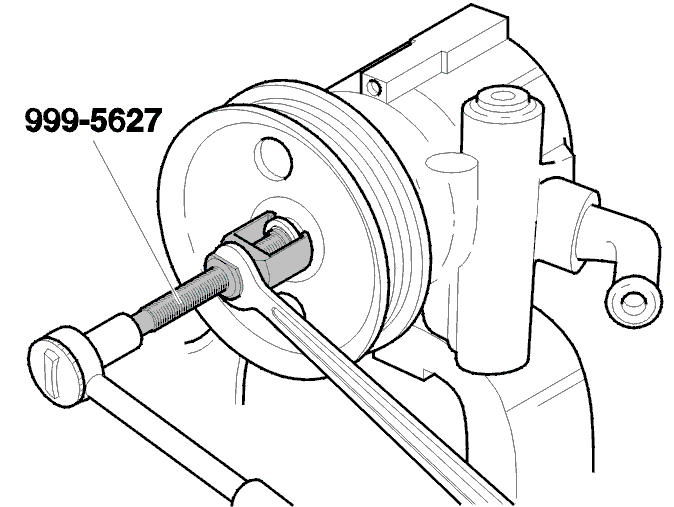

Fig 1: Removing Pulley From Power Steering Pump
GLL116394Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the pump in a bench vice.

Connect special tool 9995627 . Remove the pulley from the pump.
