Remove the Oil Pipe And the Hose From the Power Steering Pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

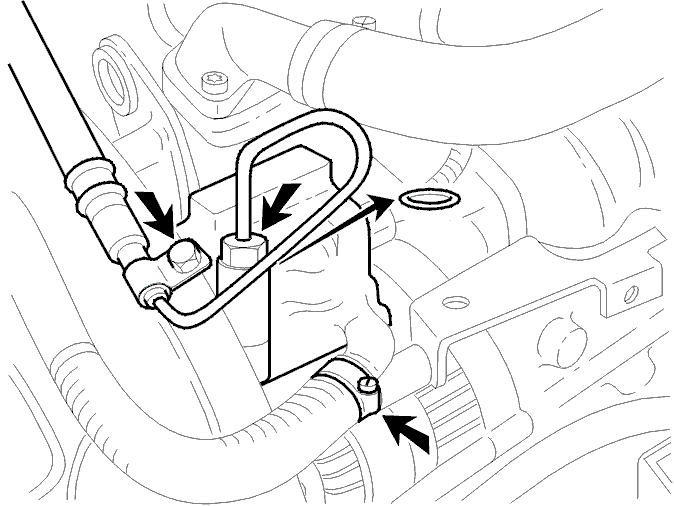

Fig 1: Power Steering Pump Oil Pipe And Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Use a trough and clean cloths to collect the oil.

Undo the clamp. Remove the feeder hose from the pump. Let the oil flow out.

Remove the bracket for the clamp.

Slacken off the nut. Remove the hose.

Remove the O-ring.

Plug the openings.
