Install the Pulley On the Power Steering Pump. Use Special Tool 999 5444

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

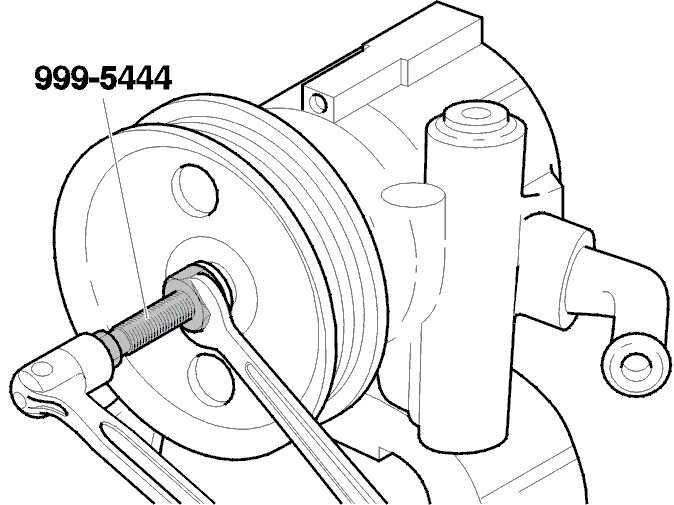

Fig 1: Installing Pulley On Power Steering Pump Using Special Tool 999 5444

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lubricate the pump shaft.

Install the pulley.

Press the shaft on as far as possible. Use special tool 9995444 .

The outside of the pulley must be flush with the end of the shaft.
