Install the Power Steering Pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

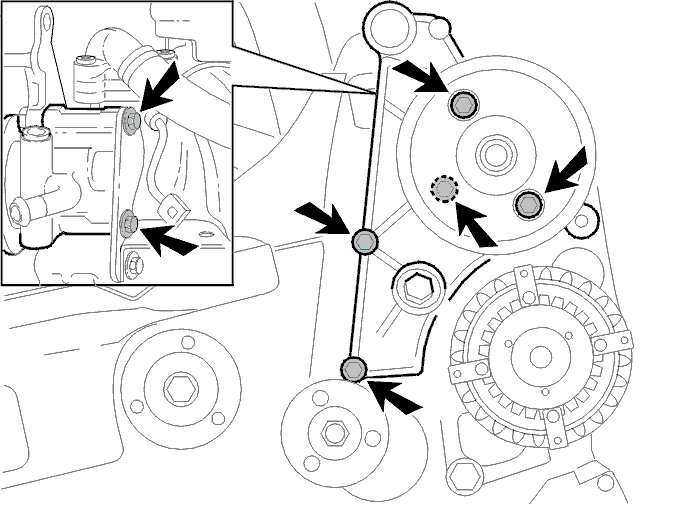

Fig 1: Power Steering Pump Screws
GLL116393Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the pump.

NOTE: Slacken off the rear mounting screws if the pump does not align between the mountings.

Install the mounting. Install the three screws on the front. Tighten by hand.

Install the two rear screws.

Install the connection mounting on the lower screw.

Tighten all the screws to 25 Nm  .
