Install the Oil Pipe And the Hose On the Power Steering Pump

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

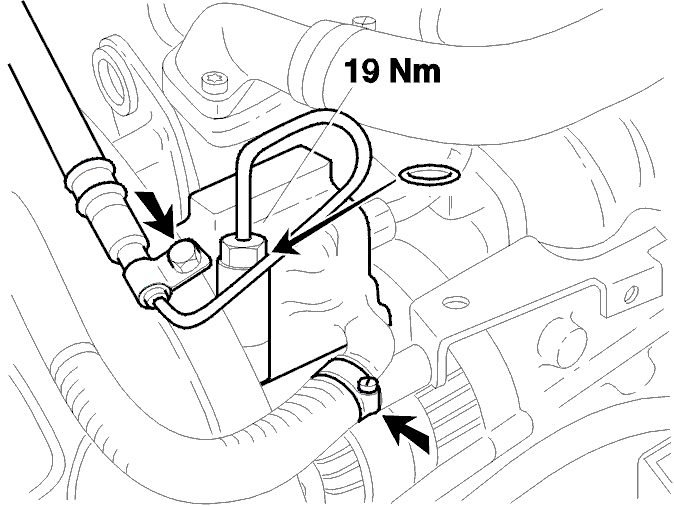

Fig 1: Installing Power Steering Pump Oil Pipe And Hose

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a new O-ring. Connect the pipe to the pump. Tighten by hand.

Tighten the bracket for the clamp.

Tighten the nut. Tighten to 19 Nm .

Connect the inlet hose to the pump.

Use a hose clip.
