Removing the Steering Wheel Module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

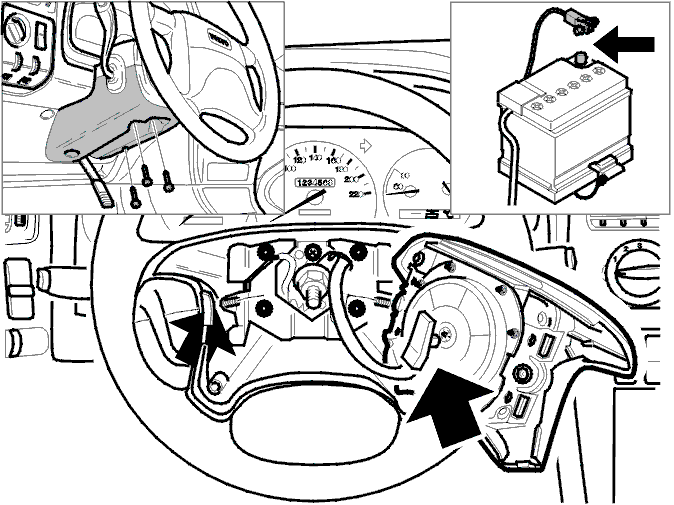

Fig 1: Identifying Steering Wheel Module Torx Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the two Torx 30 screws on the reverse of the steering wheel.

Turn the steering wheel 90° in one direction and then the other to access the screws.

Disconnect the connector. Remove the airbag.

Remove the steering wheel module (2x Torx 30 screws).

Carefully disconnect the green connector.

Always place the steering wheel module with the reverse (metal side) downwards in a well protected place.
