Removing the Intermediate Plate For the Steering Column

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

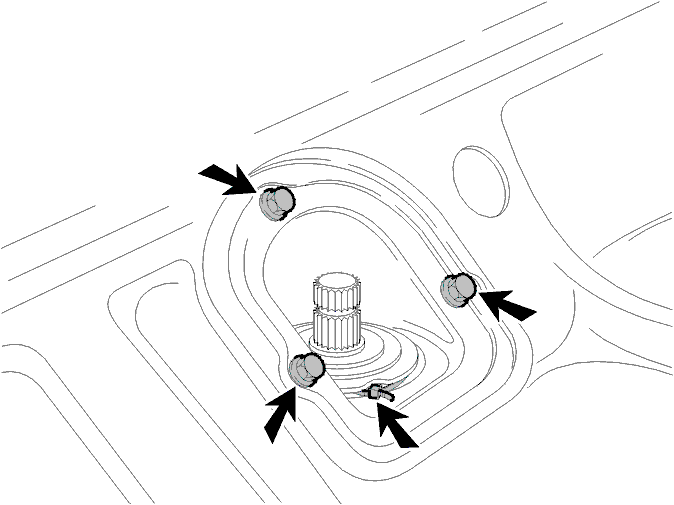

Fig 1: Identifying Intermediate Plate Screws
GLL116388Courtesy of VOLVO CARS OF NORTH AMERICA.

Cut the tie strap.

Remove the three screws. Remove the intermediate plate.

Remove the floor carpet if necessary.
