Installing the Steering Wheel Module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

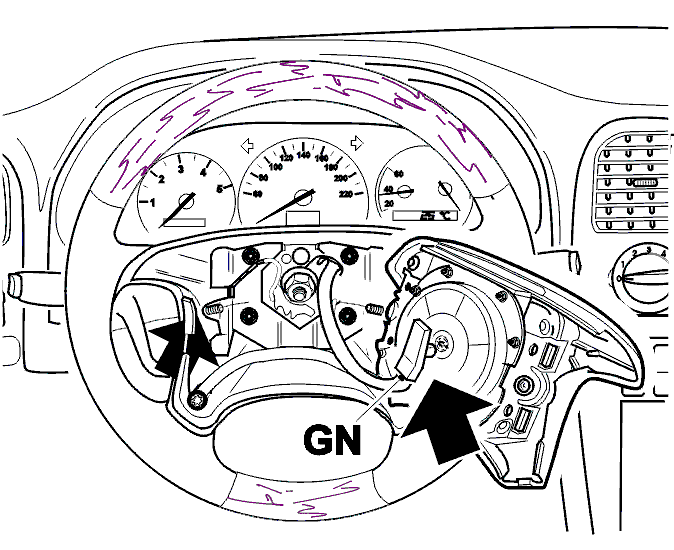

Fig 1: Identifying Steering Wheel Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect the connector to the steering wheel module. Position the module in the steering wheel.

Turn the steering wheel 90° in one direction and then the other to access the Torx 30 screws. Tighten to 10 Nm .

Install the dashboard panel.

Install the upper and lower steering wheel cover.

Turn the ignition to position II.

Connect the battery negative lead.

Re-enter the anti-theft radio code if applicable.

Set the car clock to the correct time.

Check that the horn functions.

NOTE: Read off the diagnostic trouble codes (DTCs) in the SRS system.
