Installing Components For the Steering Column

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

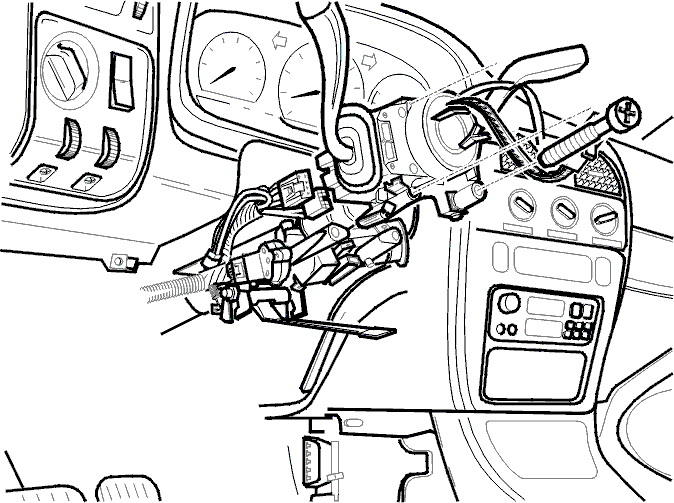

Fig 1: Identifying Steering Column Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the connector for the switch for the turn signal lamps
the mounting and the switch. Tighten to 6 Nm
install the cable harness. Connect the connectors
the upper steering column cover. Ensure that the lugs are correctly positioned
the lower steering column cover. Tighten to 6 Nm.
