Disassemble the Adjuster For the Steering Wheel Position

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

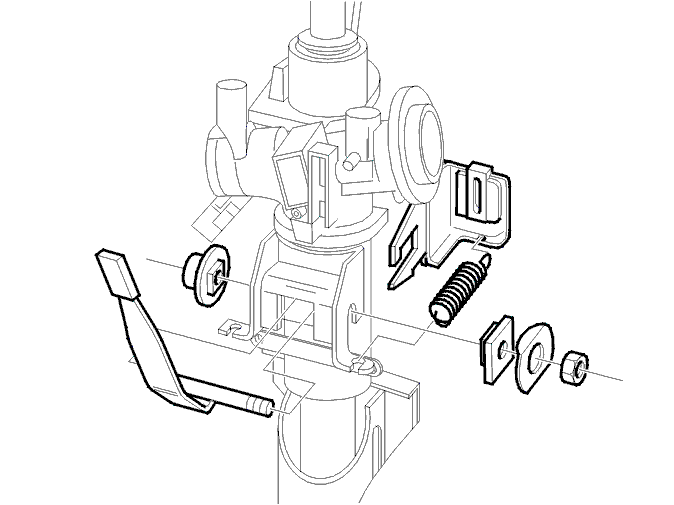

Fig 1: Steering Wheel Adjuster Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the lock plate from the lock nut
the lock nut and adapter sleeve (left threaded)
the position arm from the guide
the threaded bushing (right thread)
both the springs
the holder and position arm from the steering column.
