Install the Steering Wheel Module

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

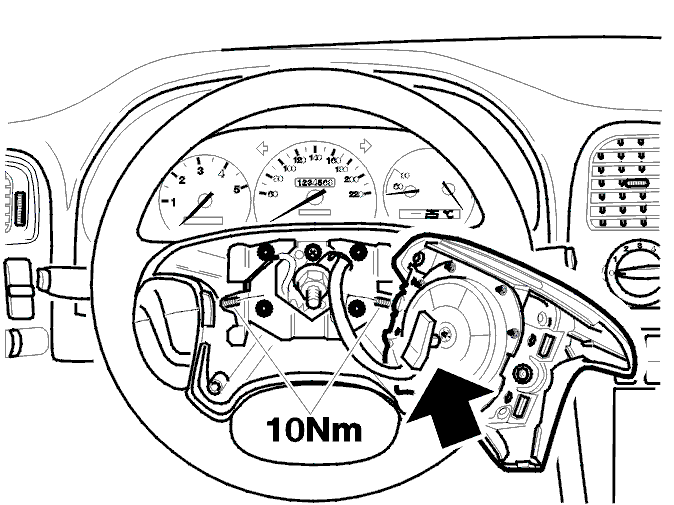

Fig 1: Identifying Steering Wheel Module And Torx Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the battery negative lead
test dummy 9988695 .

Install:

the connector. Hold the lower part of the steering wheel module on the steering wheel
the steering wheel module. Tighten both the torx screws. Tighten to 10 Nm .

Check that nothing is trapped and that the steering wheel module is correctly secured.
