Checking the Pump Pressure At the Left Limit Position

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

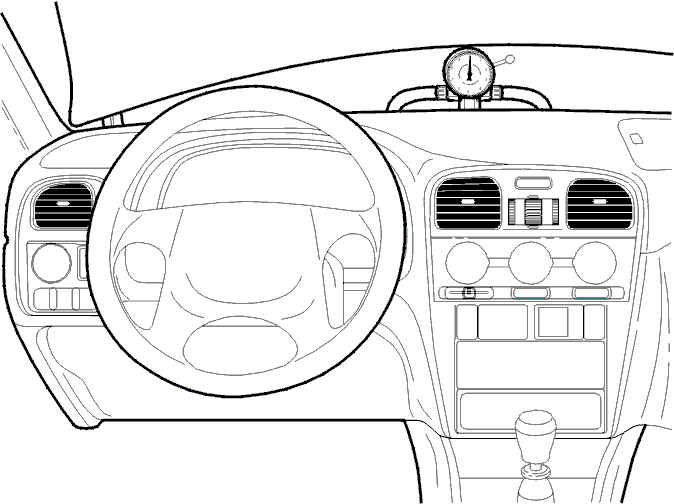

Fig 1: Manometer Positioned In Engine Compartment So That It Can Be Read Off From Driver's Seat
GLL116404Courtesy of VOLVO CARS OF NORTH AMERICA.

Start the engine.

Turn the steering wheel to the left. Press to the limit position for a maximum of 10 seconds  while reading off the manometer.

NOTE: Correct pressure: 9.6 MPa (98 bar, Saginaw), 11.0 MPa (110 bar, ZF).
