Checking Balance When Turning Wheel To Right
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Start the engine.
Turn steering wheel nearly to the right limit position.

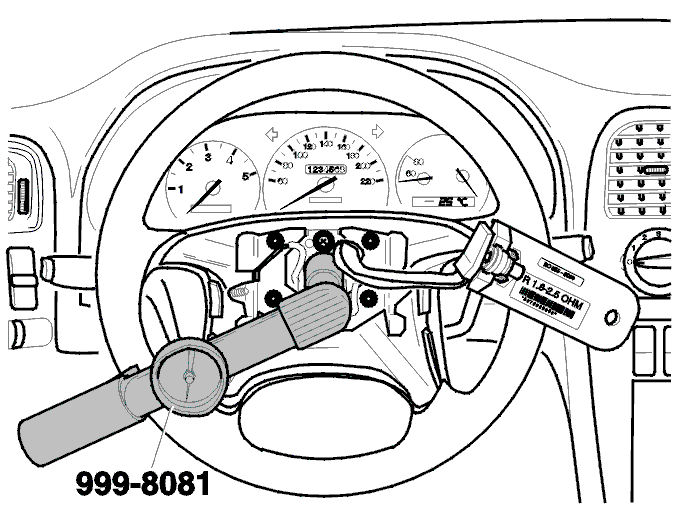

Connect torque gauge 9998081 to the steering wheel screw. Turn the torque gauge slowly to the right. Read off the torque just as the manometer reaches 1.2 MPa (12 bar).
