Tighten Pipe Connections To Pump And Steering Gear Housing

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

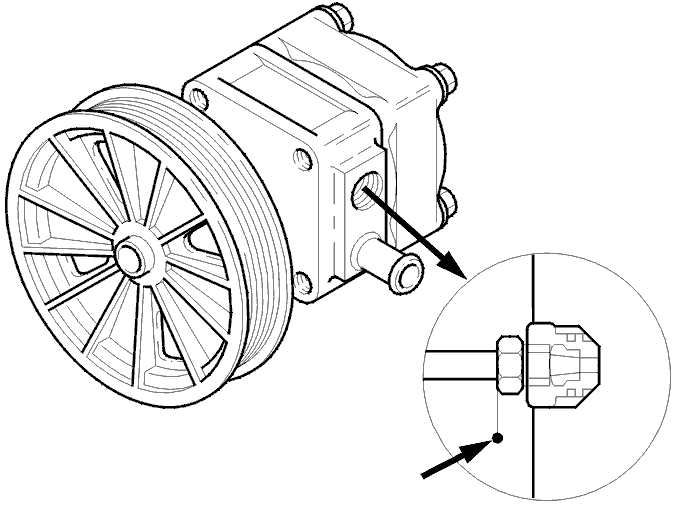

Fig 1: Pipe Connections
GLL116435Courtesy of VOLVO CARS OF NORTH AMERICA.

Tighten all pipe connections well.

Fill and bleed hydraulic oil reservoir, see Power steering system, filling and bleeding .
