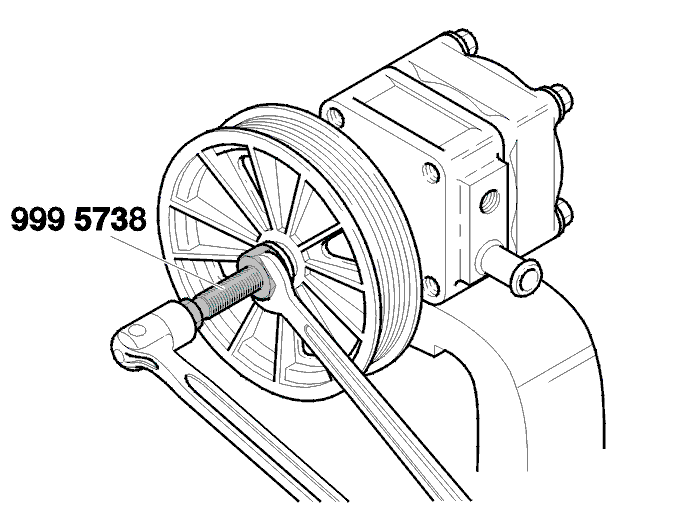

The power steering pump shaft, installing the pulley with special tool 999 5738
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
- Grease the pump shaft
- Install the pulley
- Press the pulley on the shaft as far as possible. Use special tool 9995738
- The center edge of the pulley must be level with the end of the pump shaft.
