Installing the Steering Column

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

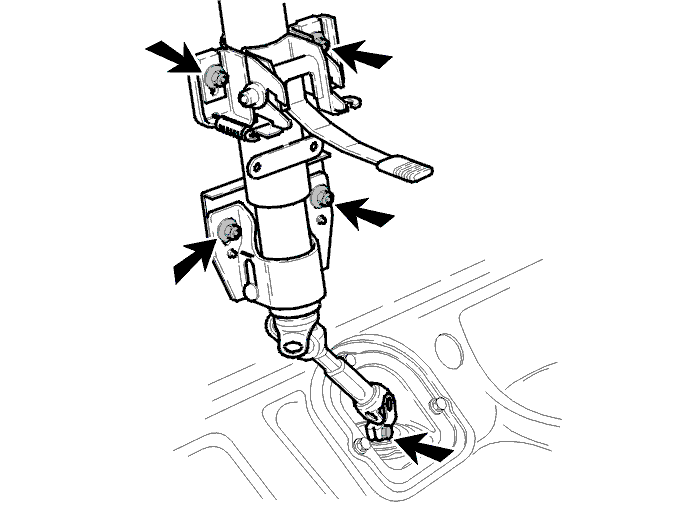

Fig 1: Steering Column Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the steering column on the pinion shaft
the four screws for the steering column loosely
the screw for the pinion shaft and steering shaft joint. Tighten to 17 Nm
the four screws for the steering column. Tighten to 25 Nm
the two connectors for the steering wheel lock on the left-hand side.
