Removing the Support Bracket From the Cross Member

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

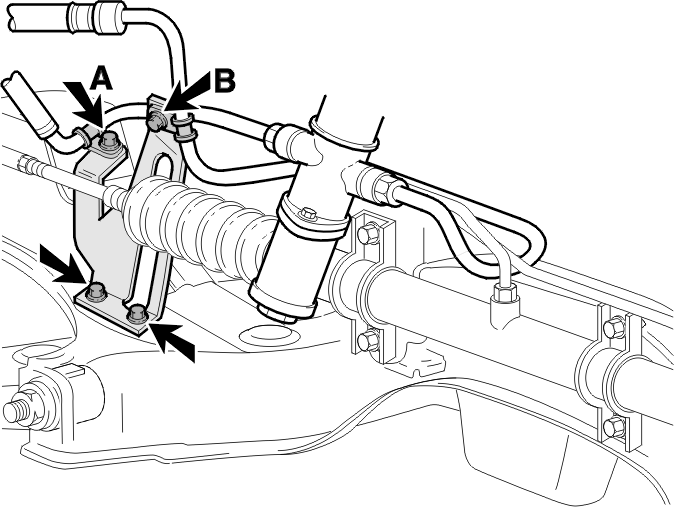

Fig 1: Removing Support Bracket From Cross Member

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the heated oxygen sensor (HO2S) cable harness from the clamp (B), if applicable, (Does Not Apply To B4184SM/SJ) .

Remove the pipe clamp (B) from the support bracket.

Remove the return line clamp (A) from the pipe support.

Remove the two mounting screws. Remove the support bracket.
