Oil Pressure Line Power Steering, Replacing (RHD): Removal: Preparations

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

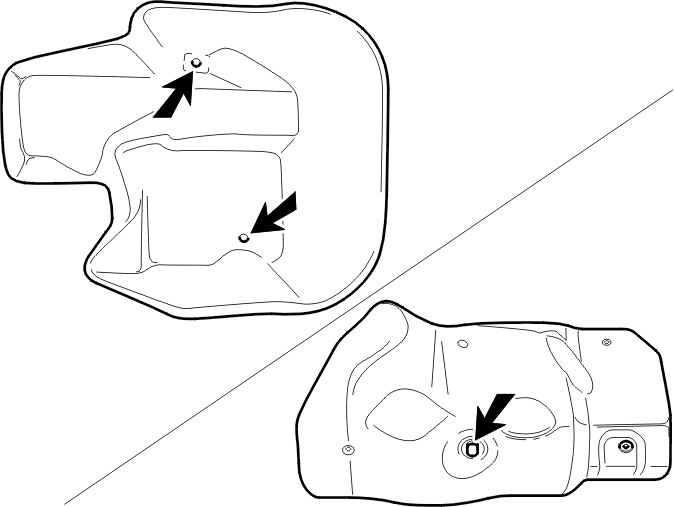

Fig 1: Steering Gear Housing Heat Deflector Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the hood.

If necessary, remove the cover over the headlamps.

Remove the engine cover.

Does not apply to B4184SM/SJ: Remove the mounting nuts for the heat deflector plate. Remove the plate from the cowl panel.

Does not apply to turbocharged gasoline engines: Remove the heat shield from the exhaust manifold.

Remove the heat deflector plate from the steering gear housing by removing the mounting screws and then pulling the plate away from the steering gear housing (clamps). Move the heat deflector plate as far as possible to the side.
