Securing the Delivery Line On the Steering Gear Side
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

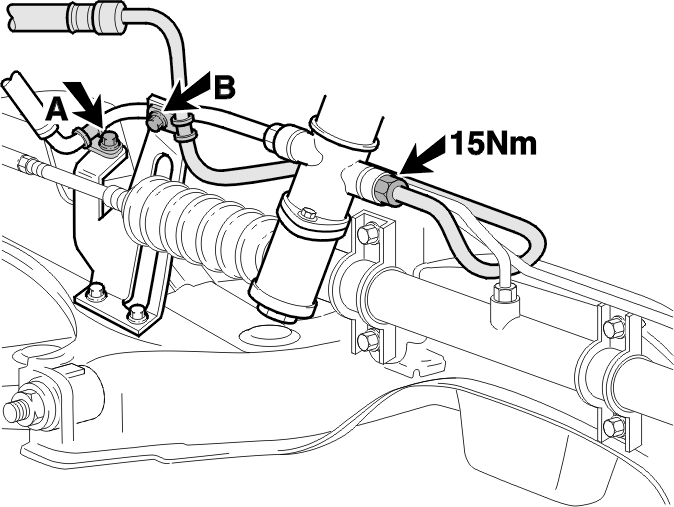

Install the pipe clamp (B) using the screw.
Install the pipe clamp (A) using the screw.
Tighten the nut for the pipe connection on the steering gear housing. Tighten to 15 Nm .
Tighten the pipe clamps:M6 10 Nm , M8 20 Nm .
Secure the heated oxygen sensor (HO2S) cable harness to the pipe clamp (B), if applicable, (does not apply to B4184SM/SJ) .
