Installing/Aligning the Delivery Line On the Steering Gear Side
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Clean the connections thoroughly.

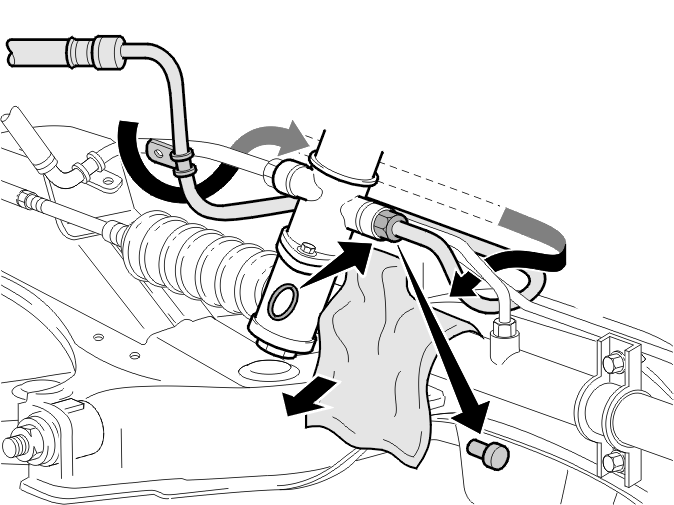

Position the delivery line by pulling it around behind the steering gear housing using a 180 degree twisting movement, under both delivery lines, and on to the pipe coupling (rear the pipe at the rear between the car body and the cross member).
Install new O-rings on the pipe.
Remove the plug from the steering gear housing. Tighten the pipe connection nut by hand.
