Installing the Support Bracket On the Cross Member

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

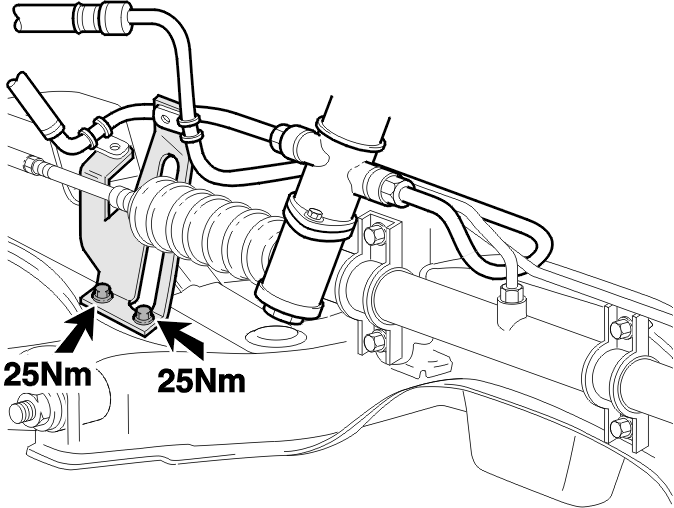

Fig 1: Installing Support Bracket On Cross Member
GLL116468Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the support bracket on the cross member. Tighten the two screws. Tighten to 25 Nm  .
