Installing the Delivery Line On the Power Steering Pump (B4184SM/SJ)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

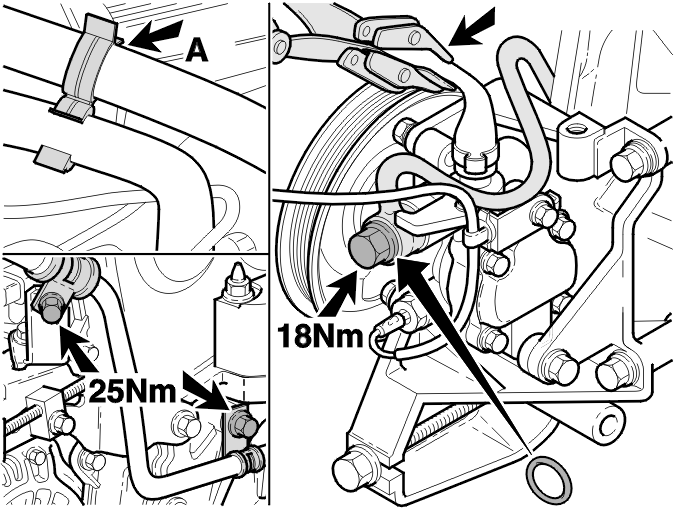

Fig 1: Installing Delivery Line On Power Steering Pump (B4184SM/SJ)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install a new O-ring. Align the pipe.

Finger tighten the pipe screw.

Finger tighten both pipe clamps.

Tighten the banjo screw. Tighten to 18 Nm .

Remove the lock grip pliers.

Tighten the pipe clamps. Tighten to 25 Nm .
