Removing the Delivery Line From the Power Steering Pump (Does Not Apply To B4184SM/SJ)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

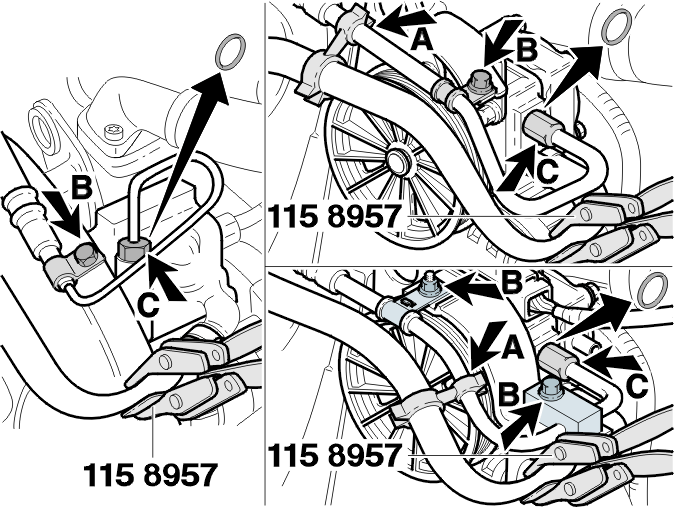

Fig 1: Removing Delivery Line From Power Steering Pump (Does Not Apply To B4184SM/SJ)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the pipe clamp (A).

Remove the pipe clamp (B) from the pump support.

Install 1158957 on the inlet hose. Clamp the hose.

Collect the oil in a container and wipe up any spilled oil using a rag.

Disconnect and release the pipe connection nut (C). Pull out the pipe.

Remove the O-ring and plug the pipe to prevent oil running out.

Move the pipe to one side and allow as much oil as possible to drain out.
