Removing the Delivery Line From the Power Steering Pump (B4184SM/SJ)
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

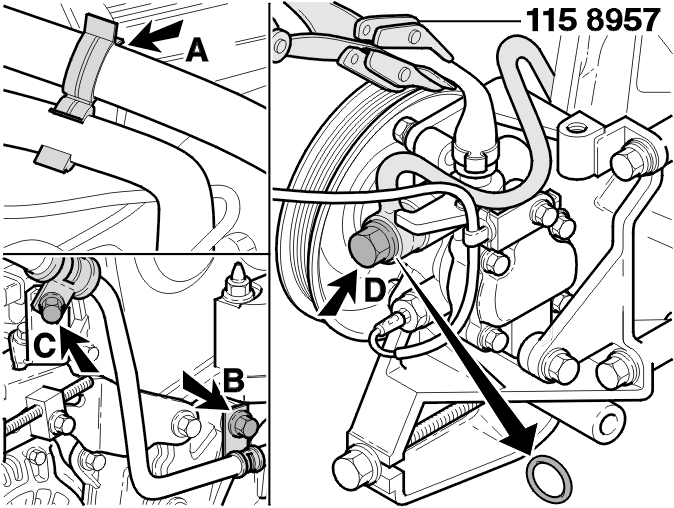

Remove the pipe clamp (A).
Remove the pipe clamp (B) on the distributor side.
Remove the pipe clamp (C) at the generator bracket.
Install 1158957 on the inlet hose. Clamp the hose.
Collect the oil in a container.
Remove the banjo screw (D) and remove the pipe.
Plug the holes to prevent oil running out.
Move the pipe to one side and allow as much oil as possible to drain out.
