Removing the Delivery Line From the Pipe Clamps On the Power Steering Side
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

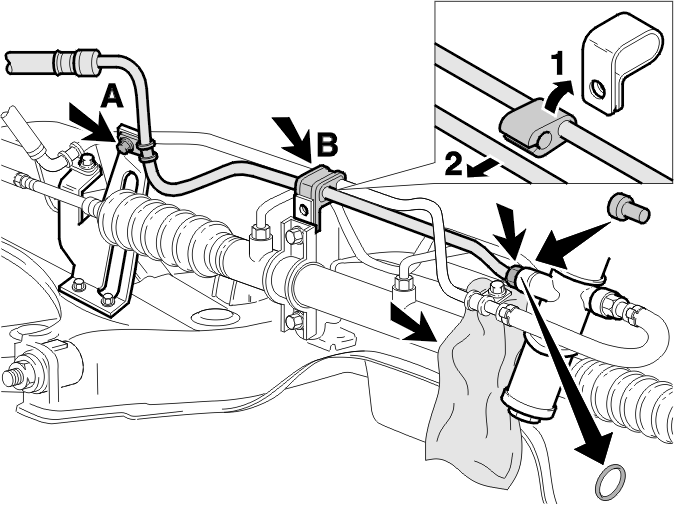

Position a container under the steering gear to collect the oil.
Use a rag to catch spilled oil.
Remove the pipe clamp (A) from the mounting, right-hand side.
Remove the heated oxygen sensor (HO2S) cable harness from the clamp (A), if applicable.
Disconnect the pipe clamp (B), slide the clamp off the rubber and remove the clamp.
Release the rubber from the delivery line by moving the return line back a little.
Disconnect and release the pipe connection and pull out the pipe.
Immediately plug the opening in the steering gear housing and the pipe.
Remove the pipe and O-rings.
Empty the oil out of the pipe.
