Securing the Delivery Line On the Steering Gear Side

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

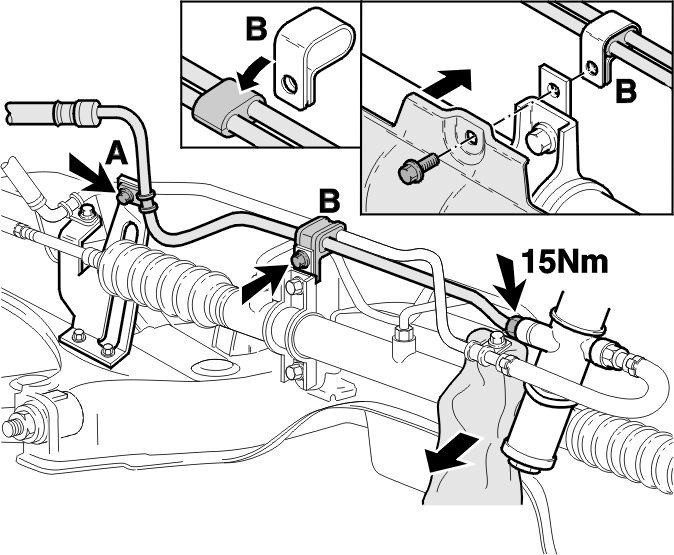

Fig 1: Securing Delivery Line On Steering Gear Side

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the pipe clamp using the screw (A).

Slide the pipe clamp (B) over the rubber and align the clamp for securing. Place the pipe clamp directly opposite the threaded hole.B4184SM/SJ: Insert and finger tighten the screws.

Does not apply to B4184SM/SJ: Press the heat deflector plate with the clamps into place over the steering gear housing. Position the pipe clamp (B) directly opposite the hole and finger-tighten the screw.

Tighten the nut for the pipe connection on the steering gear housing. Tighten to 15 Nm .

Tighten the pipe clamps:M6 10 Nm, M8 15 Nm .

Does not apply to B4184SM/SJ: Secure the cable for the heated oxygen sensor (HO2S) to the pipe clamp (A) before tightening.
