Installing the Delivery Line On the Power Steering Pump (Does Not Apply To B4184SM/SJ)

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

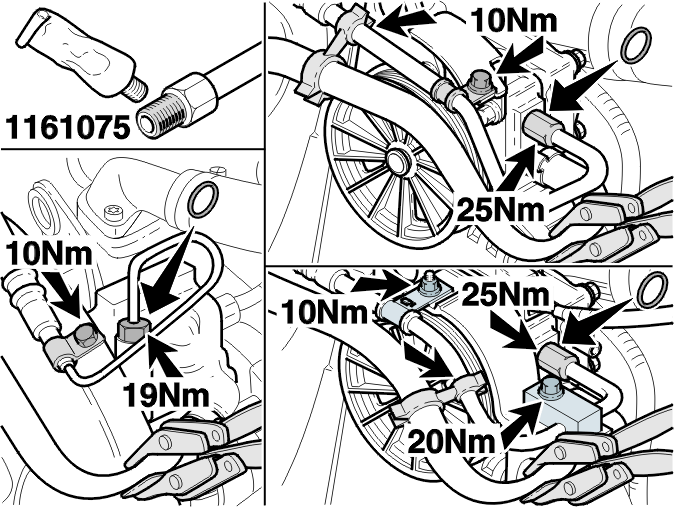

Fig 1: Installing Delivery Line On Power Steering Pump (Does Not Apply To B4184SM/SJ)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the pipe (pipe coupling) directly opposite the pipe connection using a new O-ring.

Apply thread sealant 1161075 on the threads for the pipe connection nut.

Finger tighten the pipe connection nut.

Finger tighten both pipe clamps.

Now tighten the pipe connection nut: -1999 to 19 Nm and 2000- to max. 25 Nm .

Remove the lock grip pliers.

Tighten the pipe clamps: M6 10 Nm, M8 20 Nm .
