Installing And Aligning the Delivery Line On the Steering Gear Side
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Clean the connections thoroughly.
Install new O-rings on the pipe.

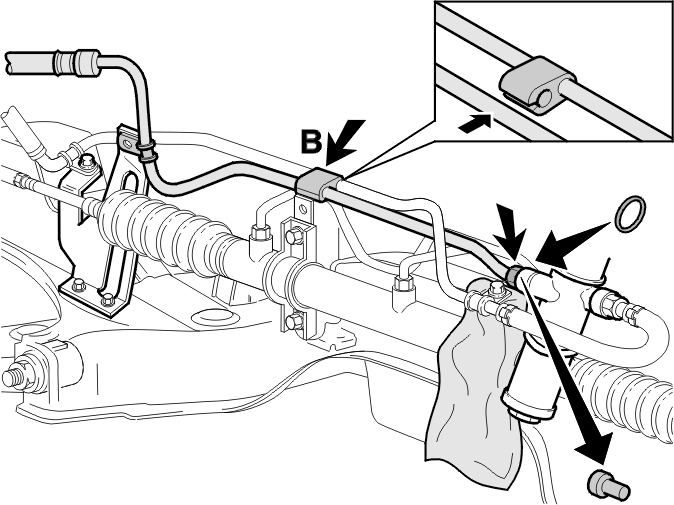

Position the pipe. Remove the plug from the steering gear housing. Finger-tighten the pipe connection.
Secure the rubber (B), positioned on the return line, over the delivery line.
