Checking the Balance When Turning the Steering Wheel
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Turning the Steering Wheel To the Right
Start the engine.
Turn steering wheel nearly to the right limit position.

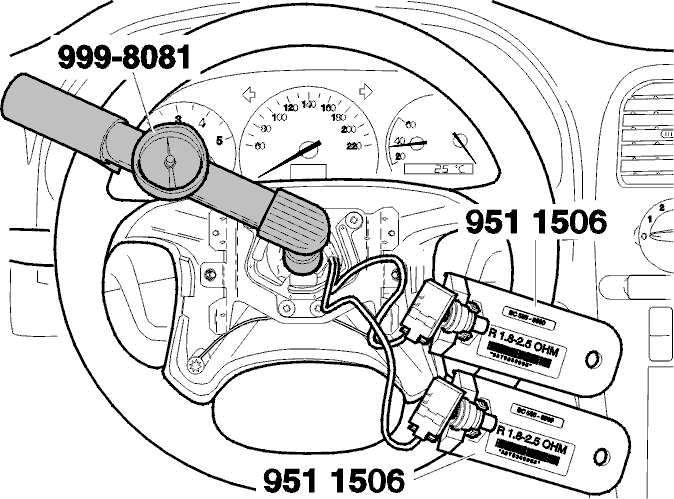

Connect torque gauge 9998081 to the steering wheel screw. Turn the torque gauge slowly to the right. Read off the torque just as the manometer reaches 1.2 MPa (12 kg/cm2 ).
Turning the steering wheel to the left
Turn the wheel nearly to the left limit position. Read off the torque in the same way as for the right-hand side.
