Installing the Ball Joint On the Tie Rod

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

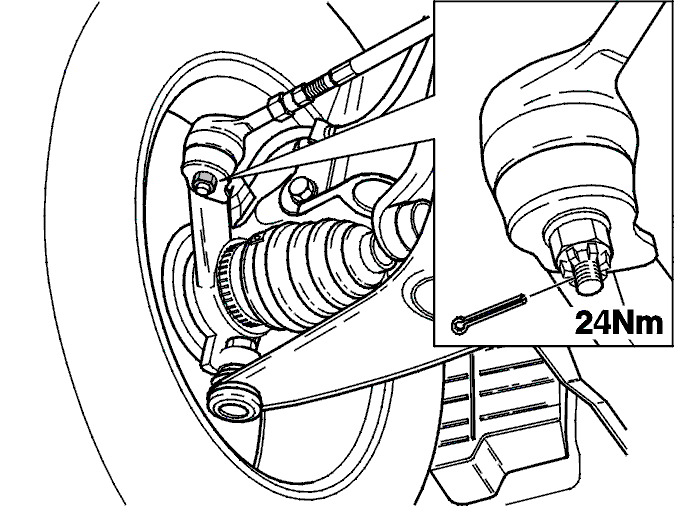

Fig 1: Installing Ball Joint On Tie Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

(Count the number of turns)

Install:

the ball joint for the tie rod in the wheel spindle
the castle nut/lock nut. Tighten to 24 Nm .

If applicable, install the split pin. Only tighten the castle nut further if required to insert the split pin.

Check the toe-in. See Wheel Alignment, Checking/Adjusting .
