Remove the Bearing From the Wheel Spindle

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

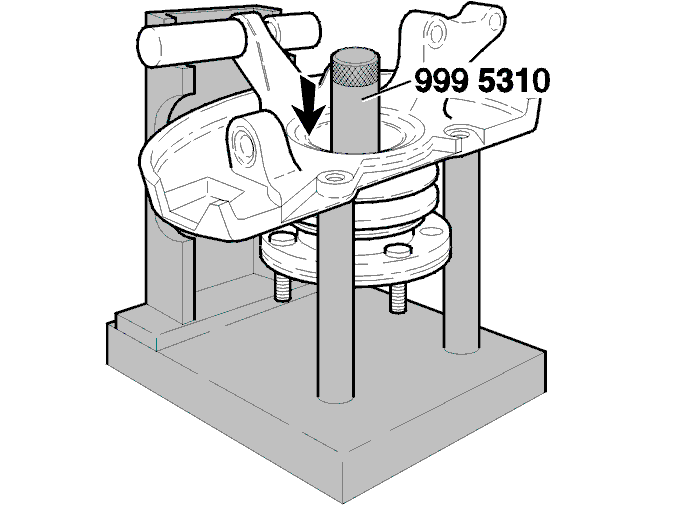

Fig 1: Pressing Hub Out Of Bearing

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect special tool 9995310 . Press the hub out of the bearing.

NOTE: the inner ring can be left in place on the hub.

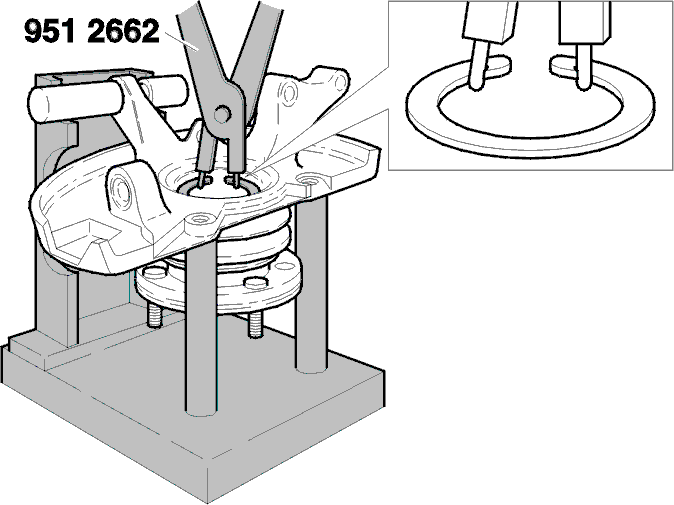

Fig 2: Removing Sealing Ring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

the inner sealing ring
the snap ring. Use special tool 9512662 .

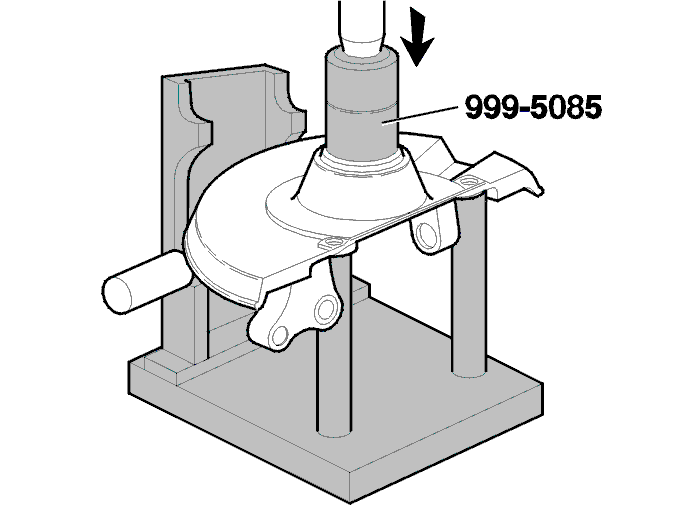

Fig 3: Pressing Hub Out Of Wheel Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Turn the wheel spindle over in the tool.

Connect special tool 9995085 . Press the hub out of the wheel spindle.

NOTE: Move the inner ring to the other side of the bearing if necessary.
