Install the Wheel Hub

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

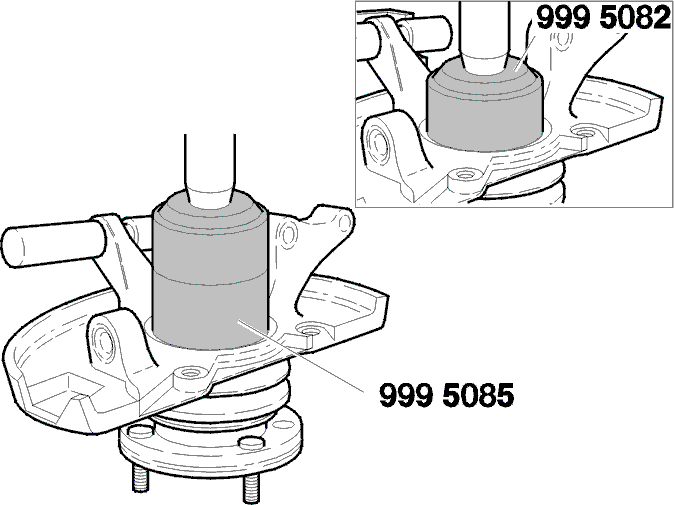

Fig 1: Pressing Wheel Spindle Over Hub Using Special Tool 999 5085
GLL116570Courtesy of VOLVO CARS OF NORTH AMERICA.

Position the hub under a press.

NOTE: Avoid damaging the wheel studs.

Press the wheel spindle over the hub. Use special tool 9995085 .
