Remove the Bearing Cap And the Bearing Retainer From the Hub

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

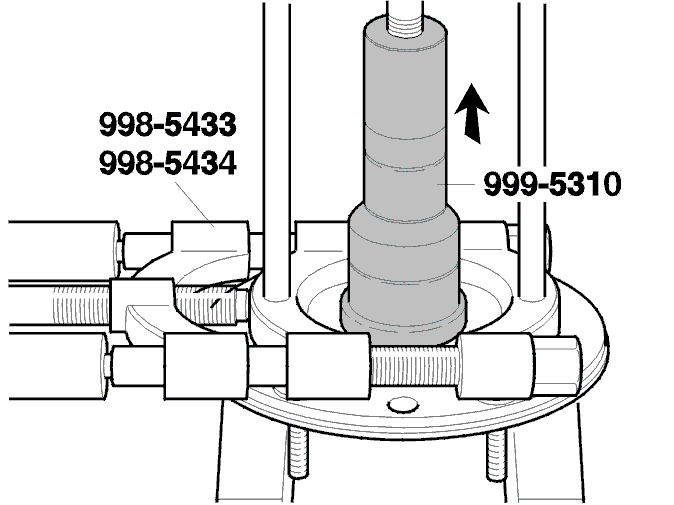

Fig 1: Removing Bearing Cap And Bearing Retainer From Hub
GLL116567Courtesy of VOLVO CARS OF NORTH AMERICA.

Connect special tool 9985433 and 9985434 .

Connect special tool 9995310 to the hub. Pull off the bearing cap.

Remove the sealing ring.
