Press the Bearing Onto the Wheel Spindle
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLVO CARS OF NORTH AMERICA.

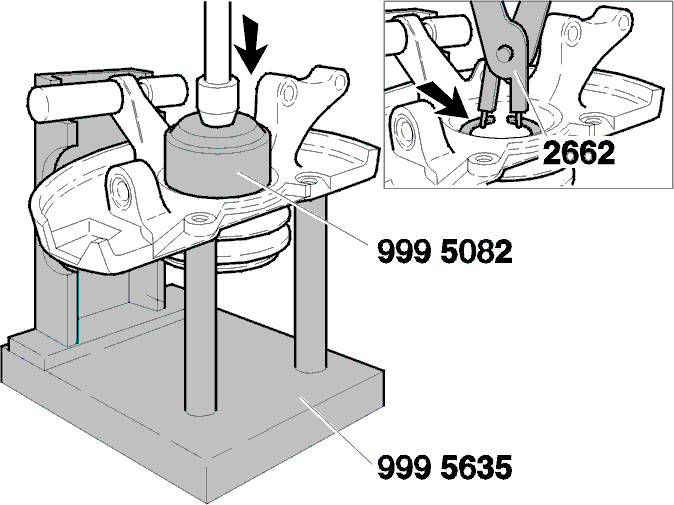

Install the wheel spindle in the special tool
9995635
.
Install the bearing with the text turned inwards.
Apply locking fluid P/N 1161006-0 to the wheel spindle
Guide the bearing and press it into place. Use special tool
9995082
.
Install a new snap ring. Use special tool
9512662
.
