Locate the Wheel Spindle In the Special Tool

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

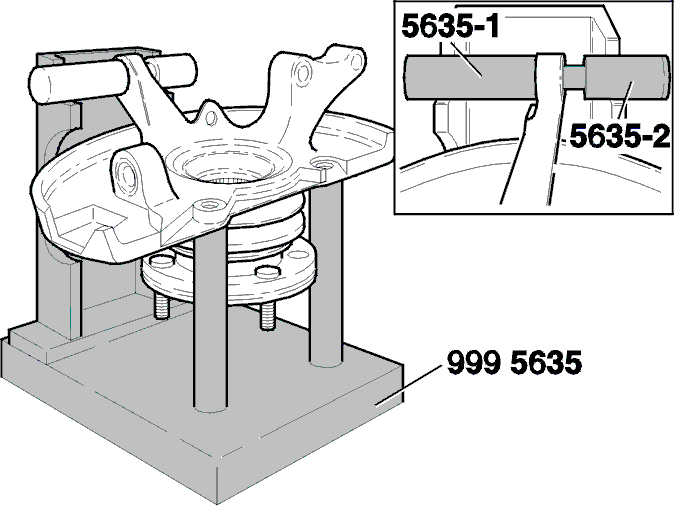

Fig 1: Wheel Spindle In Special Tool
GLL116565Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean the hub.

Screw together special tools 5635-1  and 5635-2  in the conical opening in the end of the tie rod.

Install the wheel spindle with the hub downwards in special tool 9995635 .
