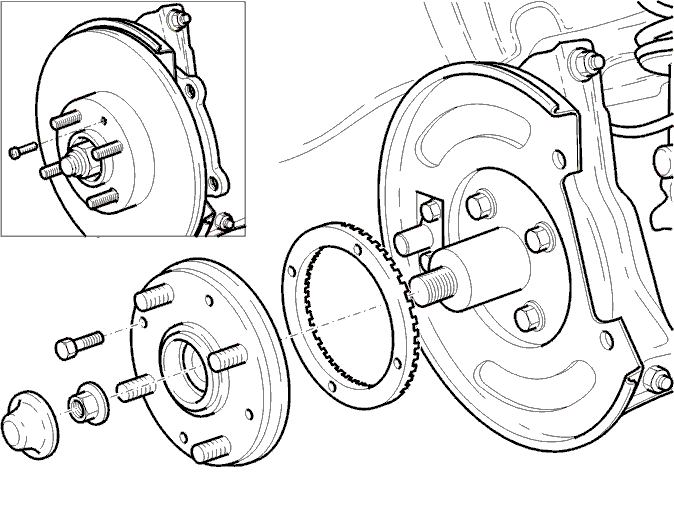

Fig 1: Removing/Installing Wheel Hub
Courtesy of VOLVO CARS OF NORTH AMERICA.
Clean the ABS sensor, the shaft journal and the hub.
Position the hub. Install the new
nut.
Tighten to:
-97 175 Nm
98- 120 Nm +30°
.
Clean and install the brake disc. Tighten to 5 Nm
.
