Removing the spring
WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

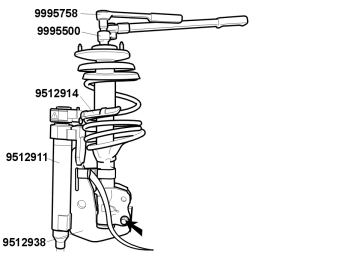

Secure 9512911 and 9512938 in a vice. Be careful, the tools are heavy. Secure the spring strut on 9512938 . Lock the spring strut on the wheel spindle with the screws.
NOTE:
Install the safety strap.
Install 9512914 across as many spring revolutions as possible.
Compress:
- the spring. Check that the spring has the right position in the claw
- the spring until it releases from the upper seat.
NOTE:
Note position of the parts. This will make installation easier.
Remove:
- the dust cover
- the nut. Use 9995500 and 9995758
- the upper bracket for the spring strut
- the bearing
- the upper spring seat
- the spring
- the spring stop and the gaiter.
Release the spring.
Remove the spring and note its position.
