Installing spring strut

WARNING: This page is about a different car, the 2004 Volvo S40, 2003 Volvo S40, 2002 Volvo S40, 2001 Volvo S40, and 2000 Volvo S40. However, it is still accessible from the selected car via links, so may be relevant.

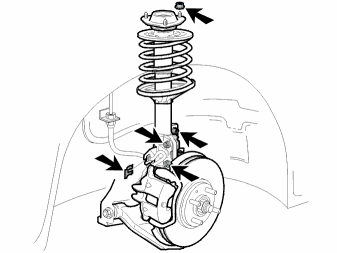

Fig 1: Identifying Spring Strut, Wheel Spindle Screws, Anti-Roll Bar, Brake Hose, ABS-Line And Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

the spring strut. Tighten the three nuts by hand
the two screws for the wheel spindle. Tighten to 90 Nm
the anti-roll bar. Tighten to 45 Nm
the brake hose and ABS-line on the bracket
the three nuts. Tighten to 40 Nm.
